QtlMovie is a graphical frontend to FFmpeg, DVD Author, telxcc, mkisofs and growisofs. QtlMovie is not a general purpose frontend to FFmpeg, so many of them already exist. QtlMovie focuses on a small number of tasks and does them the simplest possible way. The main goal of QtlMovie is the generation of DVD or iPad movie files from any video file or DVD. The unique feature of QtlMovie is the ability to correctly handle most types of subtitles: DVD, DVB, SRT, SSA/ASS, Teletext and burn them into the output video in one click.
- Added the ability to drag and drop several files in the main window in batch mode. This automatically creates one task per file.
- Added an option to specify the default output type (DVD, iPad, etc.)
- Added options to disable the automatic selection of original audio track with subtitles.
- Precompiled Windows binary uses Qt 5.5.1.
- Windows installer includes FFmpeg 2.8.1.
I am a movie fan and want to watch movies exclusively in original audio version with subtitles when necessary.
I record many movies from TV (digital TV and MPEG-converted analog recordings) as well as collect other movie files and I want to create DVD's out of them.
I own an iPad and many DVD's and want to watch those DVD's on the iPad.
Sounds reasonable? Yes. Or at least I thought so.
Sounds simple? Not so simple in fact. Before developing QtlMovie, I needed to use a dozen different tools depending on the type of input and output files: MediaInfo (always a good starting point), AviDemux, ProjectX, VirtualDub, MediaCoder, DVD Decrypter, VOB Merge, DeeVeeDee, Nero, several more or less functional subtitle conversion tools and, for desperate cases, a good old long ffmpeg command line. None of these tools could be removed from the toolbox. There was always a specific case (mostly because of the subtitle formats hell) where one of them was necessary. See some more on that below. Note that I only mention free tools. There may be some magic and expensive tools which do what I want but I am simply not interested.
This is why I deciding to unify all of them behind a common GUI which interfaces (but does not hide) ffmpeg and other command line tools. FFmpeg is the key tool which does most of the work. But additional tools are added to extract Teletext subtitles or create DVD file systems and media. A log window shows the generated commands and their output. To understand why QtlMovie can be useful, the log window shows no less than 10 successive commands to generate a DVD media from a TV recording containing Teletext subtitles.
Basically, the main workflow of QtlMovie is:
Open a movie file of any type, including a DVD file structure, with any combination and formats of audio, video and subtitles.

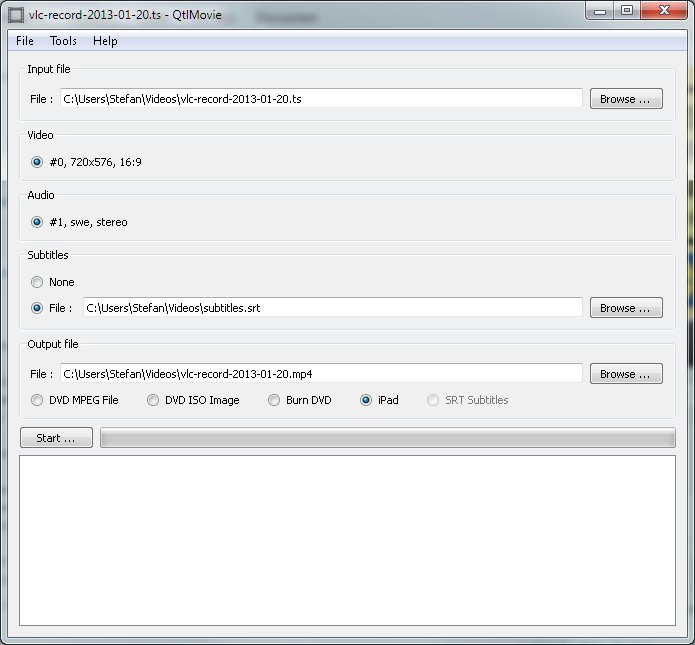

Five clicks: 1. select video track, 2. select audio track, 3. select subtitle track, 4. select output type, 5. start. All selections use simple radio buttons in one single window (no complex menus, no drop-down or combo boxes, etc.)
Everything is automated to create either a DVD (MPEG file, ISO image or burn the media, your choice) or an iPad movie file. The resulting output media is basic and simple: one video track with hardcoded subtitles, one audio track, that's all (no menu, no track selection).
Why is this complicated ?
Interestingly, although the most complex technical task, the video and audio transcoding was never a problem. Most tools handle that gracefully, mostly thanks to back-ends like FFmpeg and its libraries.
Here is a list of some technical difficulties I had to face. No traditional tool can manage them all, I needed a combination of tools. And when a solution existed in a tool, I needed to select multiple options and make some calculation each time. I hate to repeat the same or (worse) similar operations when a technical solution could exist to automate them.
Video size, display and pixel aspect ratio. Example: Considering an input video size 1280x536 with pixel aspect ratio 1:1. How do you resize and pad it to obtain a DVD video with size 720x576 and display aspect ratio 16:9? Need some simple but boring math every time.
Identification of audio and subtitle language and properties (standard, forced, for hearing/visual impaired). VOB files from DVD do not carry this information. You have to analyze the .IFO file for that. With some tools, the properties are not clearly reported, making the selection decision more difficult.
Text subtitles. Which format: SRT, SSA, ASS. Which source: a stream in the input file or an external file. How to burn them in the video. AviDemux is mostly OK but unreliable, its support for SRT vs. ASS keeps changing with versions and I faced repeated and irritating crashes.
Teletext subtitles (common in DTTV and IP-TV). The only GUI which can extract them is ProjectX. But it works only on MPEG transport stream files and its GUI is complex and counter-intuitive.
Bitmap subtitles (DVD and DVB) position and size. The video and subtitle frames have sometimes distinct sizes and overlaying them needs some manual adjustments (after hours of nervous breakdown the first time, trying to figure out why those damn subtitles did not show up).
DVD subtitle colors. The VOB files from a DVD contains bitmap subtitles without any color information. The result is ugly and barely watchable subtitles in the video. You have to dig into the .IFO file in the DVD to extract the color palette for the subtitle.
And other difficulties I have now forgotten.
Well, enough is enough. I just wanted to open a file, 5 clicks, go for a coffee (or a "magret de canard") and later collect my DVD media or iPad movie. So I developed QtlMovie.
QtlMovie is a not a sophisticated tool. It does not manipulate video and other complex bitstreams. It simply synchronizes the work of other excellent and complex tools such as FFmpeg. But "simply" is exactly the word that was missing and I hope that QtlMovie will bring it to you.
Tried to download version 1.4 x64, but my A/V deletes it due to a malware warning.
Posted November 17, 2015 by mail2tom.
Tool version 1.4
using OS Windows 8 64-bit
Ease of use 6
Value for money 10
Overall score 6
